Forming Equipment for Pellet Measurement
Last update: August 29, 2024

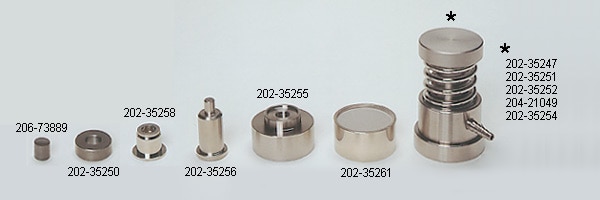

| Name | P/N | Appearance | Qty | Remarks |
|---|---|---|---|---|
| Compression Spring |
202-35252
|
|
1 | |
| Plunger Guide Fitting |
202-35251
|
|
1 | |
| Exhaust Port |
202-35254
|
|
1 | |
| Base |
202-35247
|
|
1 | |
| Φ13 mm, Sample Table |
206-73889
|
|
1 | |
| Φ13 mm, Briquetting Frame |
202-35250
|
|
1 | |
| Punching Rod |
202-35256
|
|
1 | |
| Punching Base |
202-35255
|
|
1 | |
| Sieve |
202-35261
|
|
1 | Mesh size: #200 |
| Blank Plug |
202-35257
|
|
1 | |
| O-Ring, 1AP28 |
036-10229
|
|
1 | For the base |
| O-Ring, 4CP24 |
036-11025-84
|
|
5 | For the plunger guide fitting |
| Plunger |
204-21049
|
|
1 |
| Name | P/N | Appearance | Qty | Applicable models |
|---|---|---|---|---|

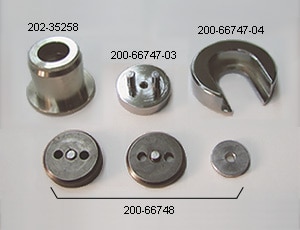

| Upper/Lower Cylinder Set + 10 pcs. of Briquetting Frames, for Φ4 mm |
206-73717-91
|
|
1 set |
KBr pellet method |
| Briquetting Frame, Φ4 mm, 20 pcs. |
206-73718-91
|
|
1 set |
KBr pellet method |
| Upper/Lower Cylinder Set + 10 pcs. of Briquetting Frames, for Φ3 mm |
200-66748
|
|
1 set |
KBr pellet method |
| Briquetting Frame, Φ3 mm, 20 pcs. |
200-66749-01
|
|
1 set |
KBr pellet method |
| Pellet Removing Tool |
200-66747-03
|
|
1 |
KBr pellet method |
| Base for Removing Pellets |
200-66747-04
|
|
1 |
KBr pellet method |
| Pellet Holder |
202-35258
|
|
1 |
