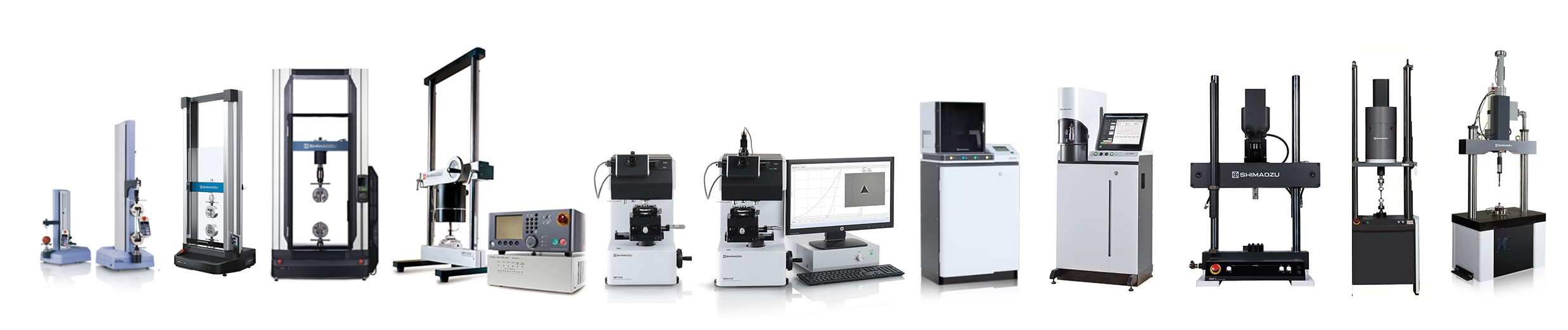

Mechanical Testing Solutions For Electronics And Semiconductors

The Shimadzu EZ-X is a compact, single-column tabletop Universal Testing Machine designed for smaller load and sample sizes.

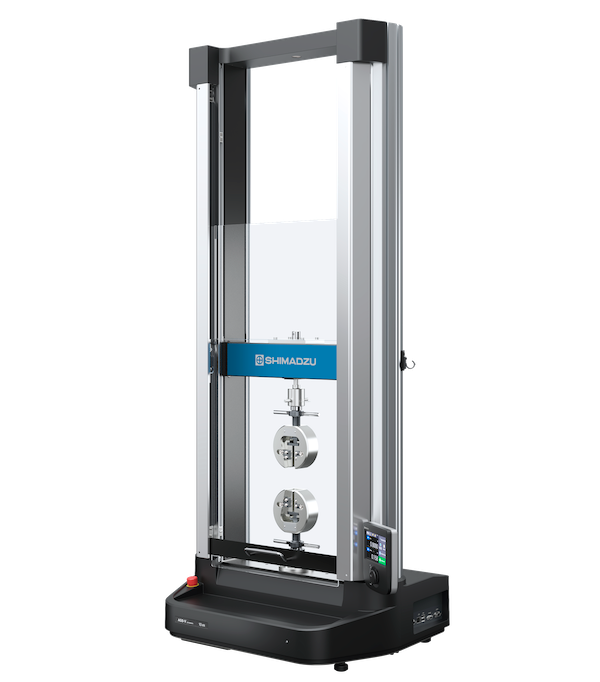

The Shimadzu Autograph AGS-V Series provide the best cost-to-performance and practical testing solutions for a wide array of applications. Offering high-level control and intuitive operation, the AGS-V series set a new standard for strength evaluations while providing the utmost in safety considerations in a modern, stylish design.​ ​

The Shimadzu AGX-V2 is a flagship dual-column Universal Testing Machine, featuring the latest advancements in testing technology. Available in both tabletop and floor models to accommodate varying load capacities and sample sizes, it is suitable for testing a wide range of materials and components testing (R&R and QA/QC)

High-speed repeated load tests can be performed at a maximum velocity of 2 m/s and a maximum stroke of ±50 mm,utilizing clean and quiet electromagnetic force as the driving power—eliminating the need for oil. The spacious test area also allows for environmental testing with the optional constant temperature tank.​

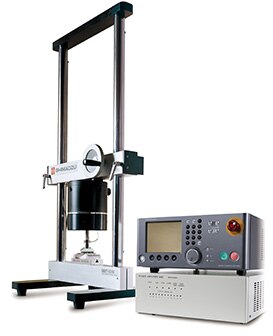

The Microservo MMT series adopts an electromagnetic actuator with an exceedingly high frequency response for its loading mechanism. By combining this with closed loop control, high speed and high precision control is possible over micro loads and micro displacement, making it ideal for dynamic testing of small and highly functional parts in the electronics and communication industries. ​

Fatigue and impact testing assess the durability of raw materials or components by evaluating their fatigue strength and impact properties under various environmental conditions. These compact tabletop models, featuring a top-mounted actuator on an L-type loading frame, are versatile tools capable of performing a wide range of fatigue and endurance tests. They are suitable for testing materials like polymers and rubber, as well as small components or parts. ​

As the demand for safety and reliability grows, evaluating the dynamic strength (impact properties) of materials andcomponents has become increasingly critical. This machine provides essential data, including maximum test force,energy, and displacement, at speeds of up to 72 km/h (20 m/s). It is available in two configurations: a tensile load type(HITS-TX) and a punching type (HITS-PX).​

This device evaluates viscosity properties by analyzing their relationship to temperature, pressure, and flow velocity forflowable materials. It is highly useful in research and development, production processes, and quality control across a wide range of materials, including thermoplastic resins, thermosetting resins, toners, composite materials, ceramics, and rubbers.​

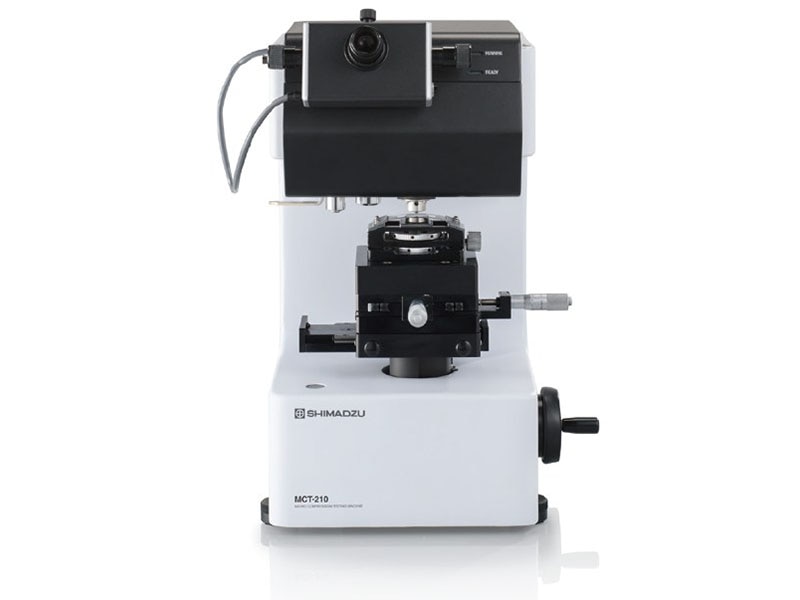

The MCT series micro compression testing machine evaluates the strength of various types of micro components, micro particles generated in powder processing, and fine fibers used in new materials. ​

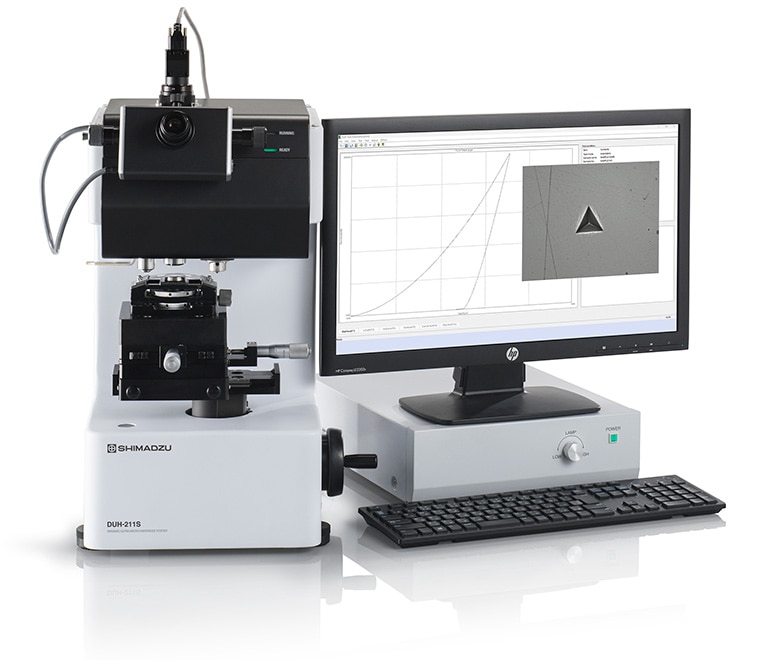

Building on our experience with hardness evaluation technology for the micro range, we have taken our quest for greater precision and ease of use to the next level. DUH hardness tester can measure the strength properties of material surfaces and microscopic materials using new evaluation methods specified in international test standards.

Electronic devices and semiconductor technologies support a variety of industries and add comfort to our lives. Shimadzu develops and manufactures a wide range of instruments to help manufacturers conduct quality control of electronic devices and comply with regulations and directives. This catalog introduces equipment and related applications, such as observation of minute parts, elemental analysis, evaluation of optical properties, measurement of hazardous substances, and evaluation of mechanical properties.

This brochure presents examples of evaluation methods and details the measurement equipment critical for semiconductor manufacturing processes, encompassing material development, processing, and inspection.
