SPM-8100FM

High-Resolution Scanning Probe Microscope

ENQUIRE NOW

See the Nano World Come to Life

The new HR-SPM scanning probe microscope uses frequency detection.
his instrument is not only capable of ultra-high resolution observations in air or liquids, but for the first time enables observations of hydration/solvation layers at solid-liquid interfaces.

Existing SPMs (scanning probe microscopes) and AFMs (atomic force microscopes) generally use AM (amplitude modulation). In principle however, the FM (frequency modulation) measurement method enables higher imaging resolution.

SPM

：

Scanning Probe Microscope

AFM

：

Atomic Force Microscope

：

Amplitude Modulation

：

Frequency Modulation

Features

High Resolution

Uses the FM-AFM method
Noise in air and liquids is reduced to 1/20th that of existing methods.
Achieves the performance level of...

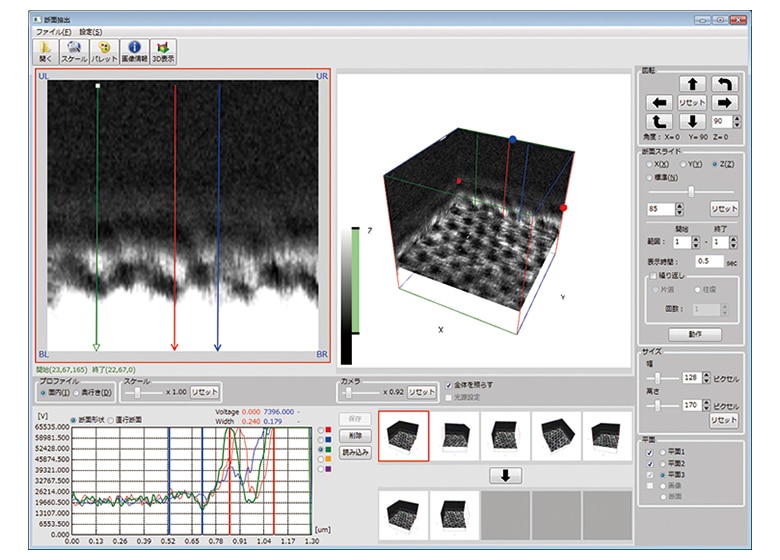

Improved Usability

The installation of the HT scanner has expanded the observation area and increased speed.
Dual monitors and signal capabiliti...

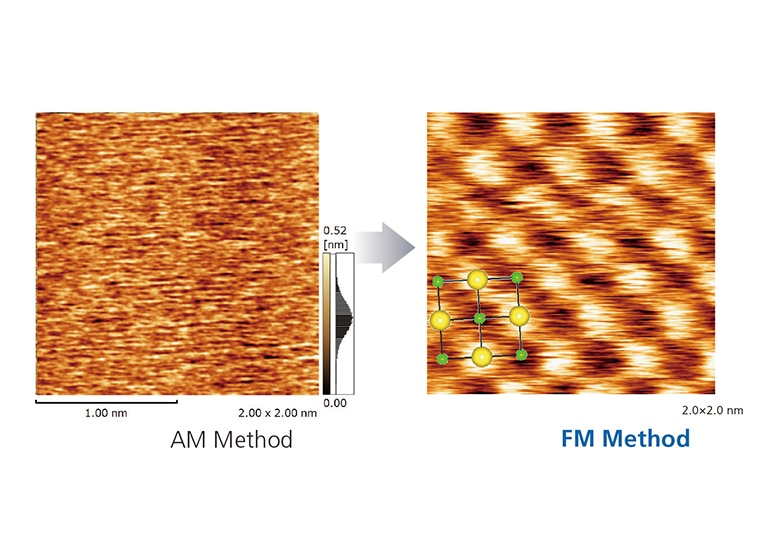

Atomic Resolution Observations in Solution

Observations were made of the arrangement of atoms on a NaCl...

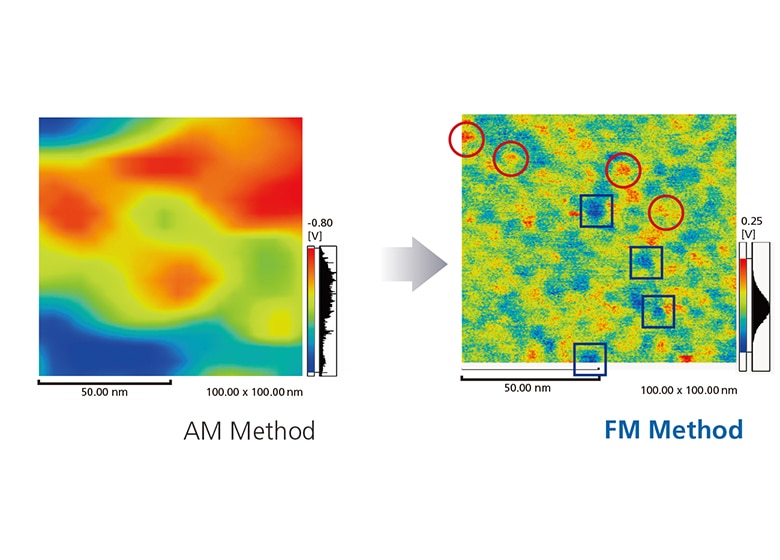

Pt Catalyst Particles Observation in Air

Pt catalyst particles in a TiO2 substrate were identified, and the surface potential was measured using a KPFM.

Learn more
