Aluminum Die Castings

Aluminum Die Castings

MPR Image

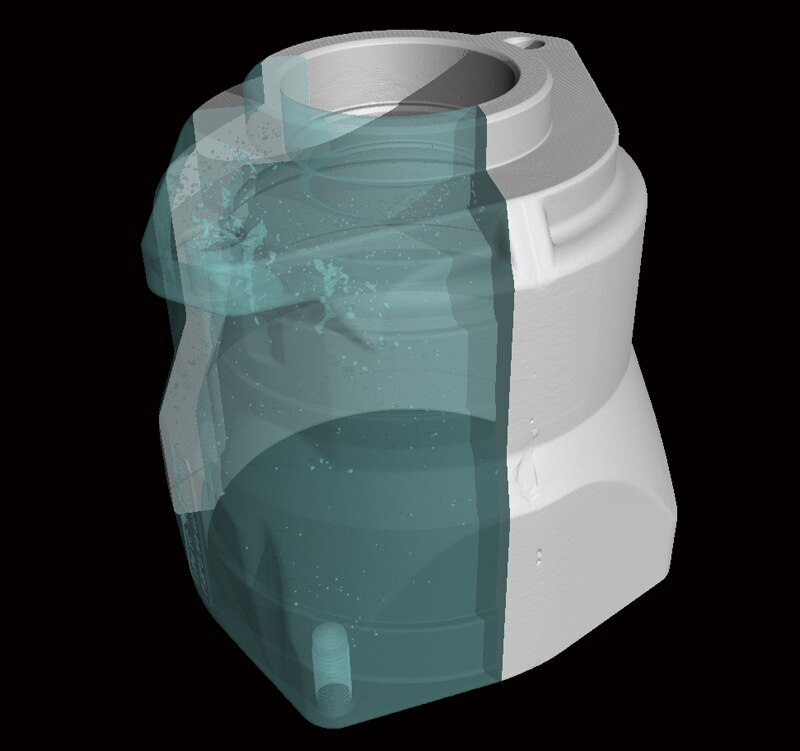

VR Image

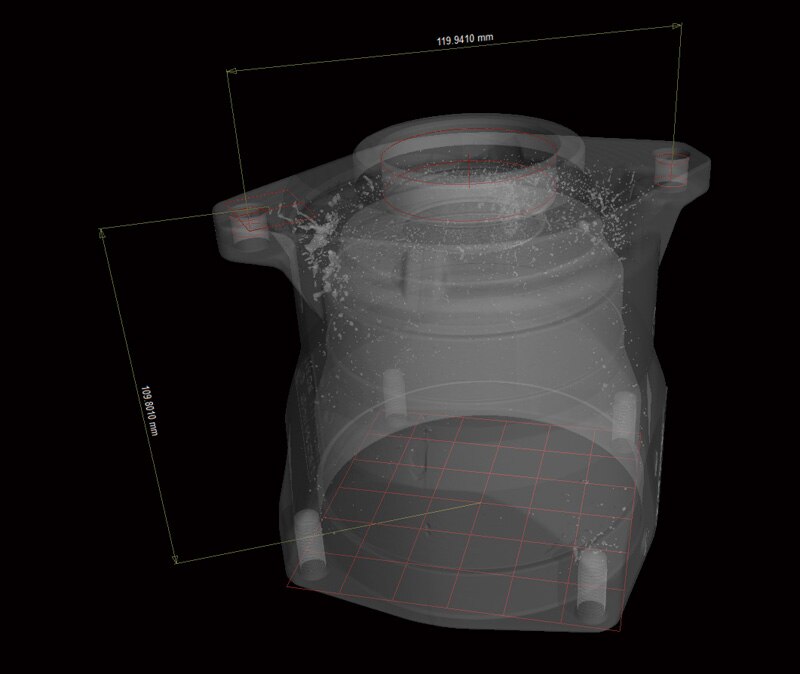

3D Measurement

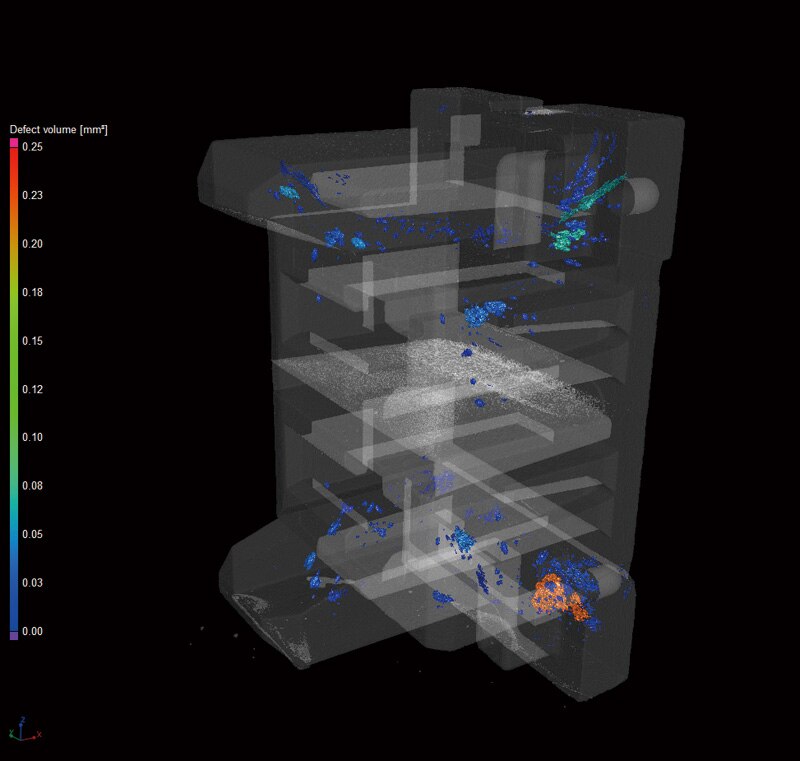

Defect Analysis
>

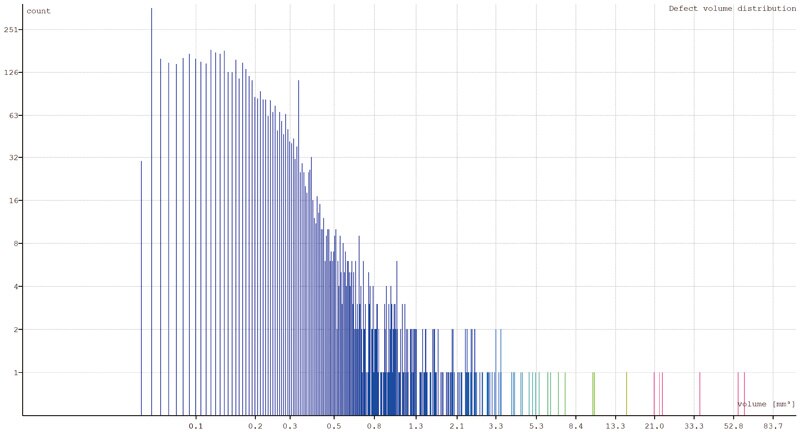

Defect Analysis Histogram

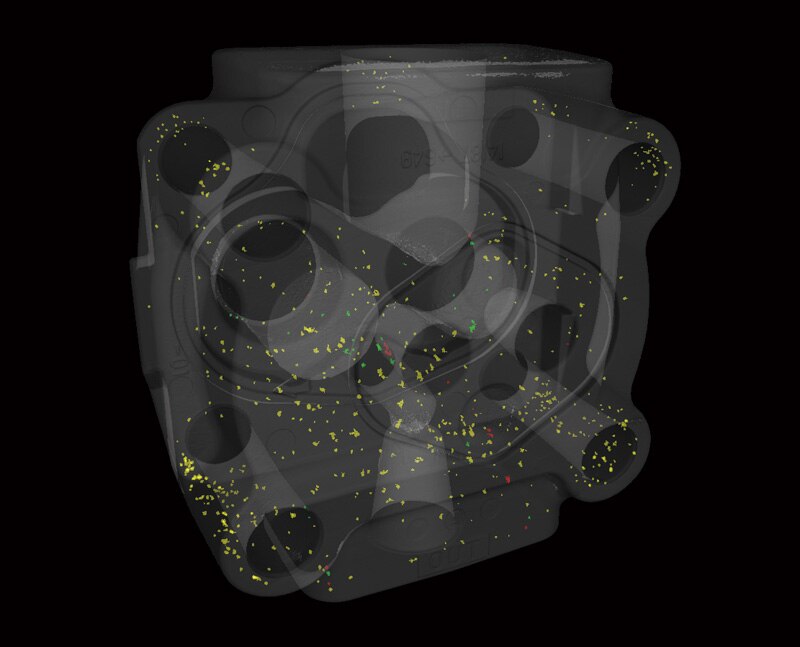

Defect analysis identifies voids and displays a color-coded map of the voids based on their volume. It can also display a frequency histogram of scale the void volume and count.

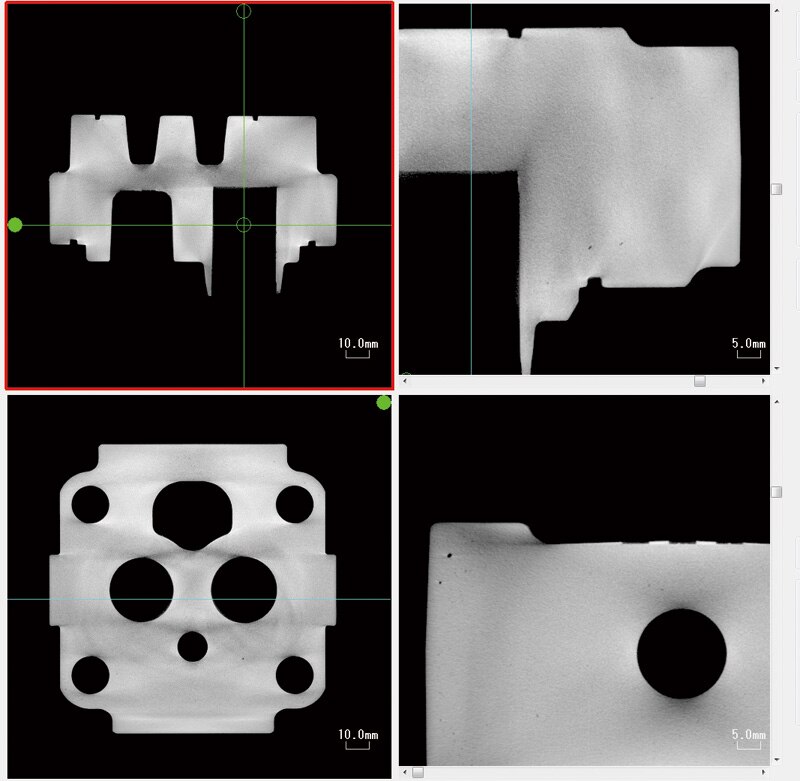

MPR Image　FOV = ø161.5 mm

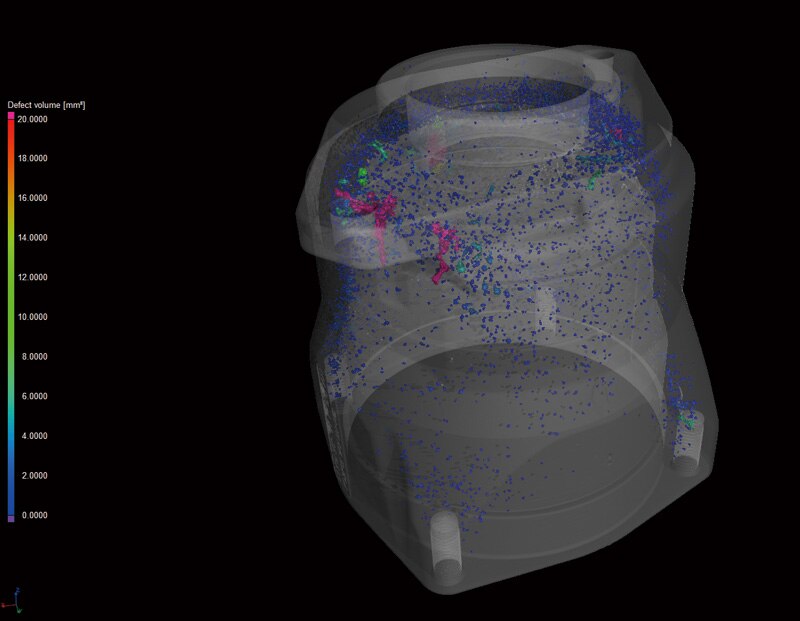

Defect Analysis
By scanning the die cast part before machining and then specifying the surface after machining (CAD data), the software can determine which voids are removed by machining, which remain internally, and which are exposed on the surface after machining.

● Voids that are removed
● Internal voids
● Voids exposed on the surface

3D CAD

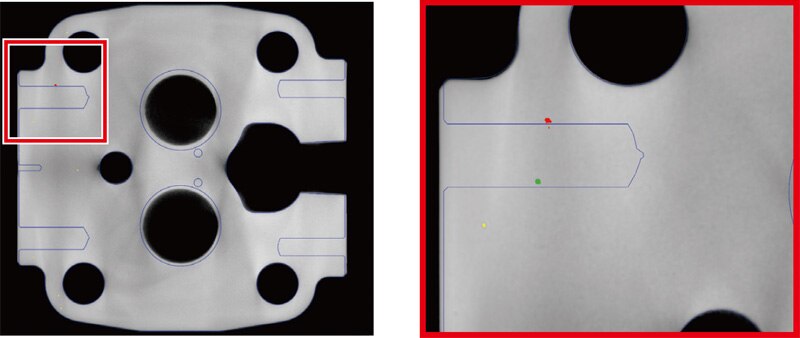

Void Determination Based on Specifying Defect Cross Section and SurfaceBlue line: CAD data analysis after machining

GFRP(Glass Fiber Reinforced Plastic)

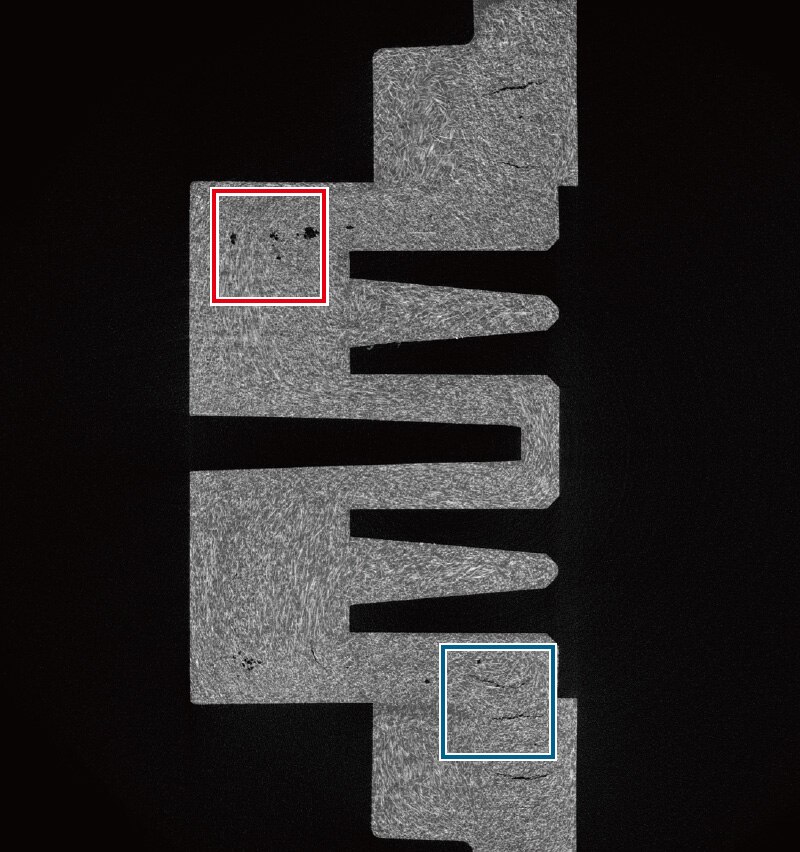

Cross Sectional Image FOV = ø20 mm
Cross Sectional Image (enlarged view)

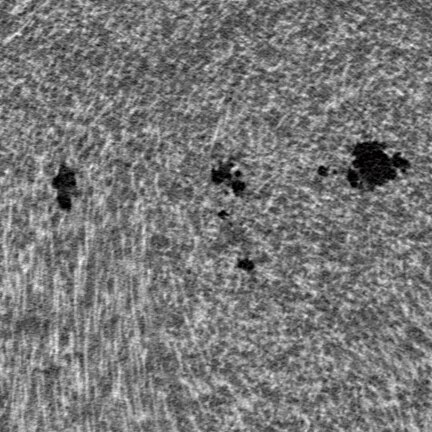

Cross Sectional Image (enlarged view)

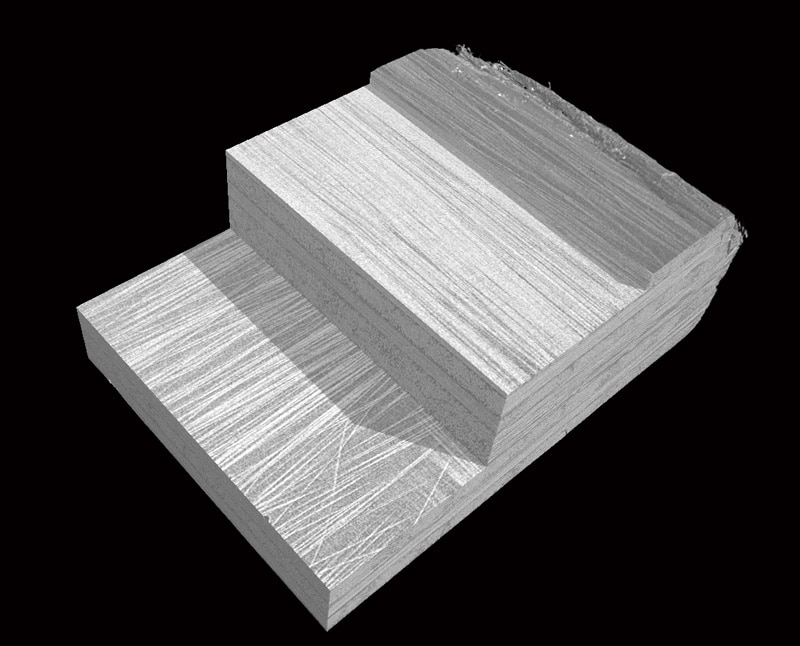

VR Image
Defect Analysis
Defect Analysis Histogram

Fiber Orientation Analysis

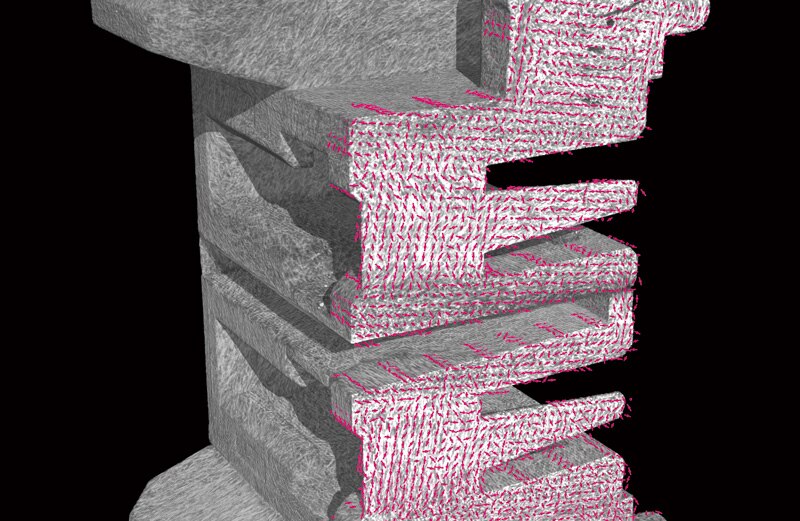

Fiber orientation analysis can display a color-coded map of filler orientation. Needles can also be displayed based on the orientation.

CFRTP (Continuous Fiber Reinforced Thermoplastic Laminate)

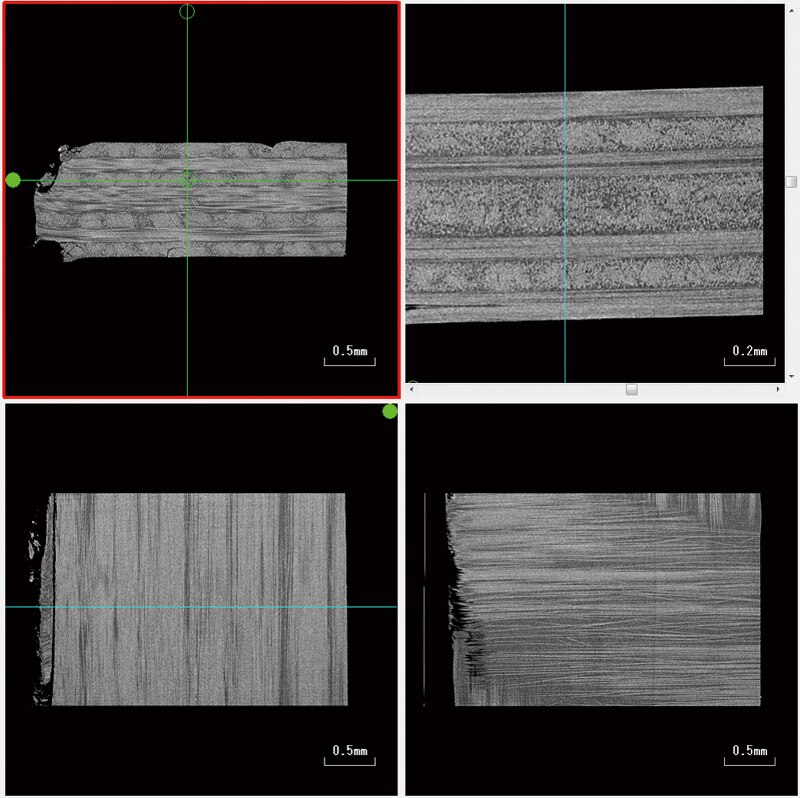

MPR Image FOV = ø3.9 mm

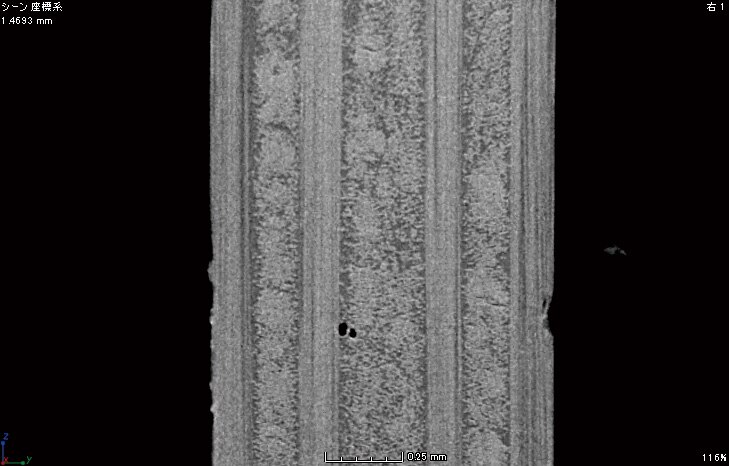

Oblique Image
Defect Analysis

VR Image

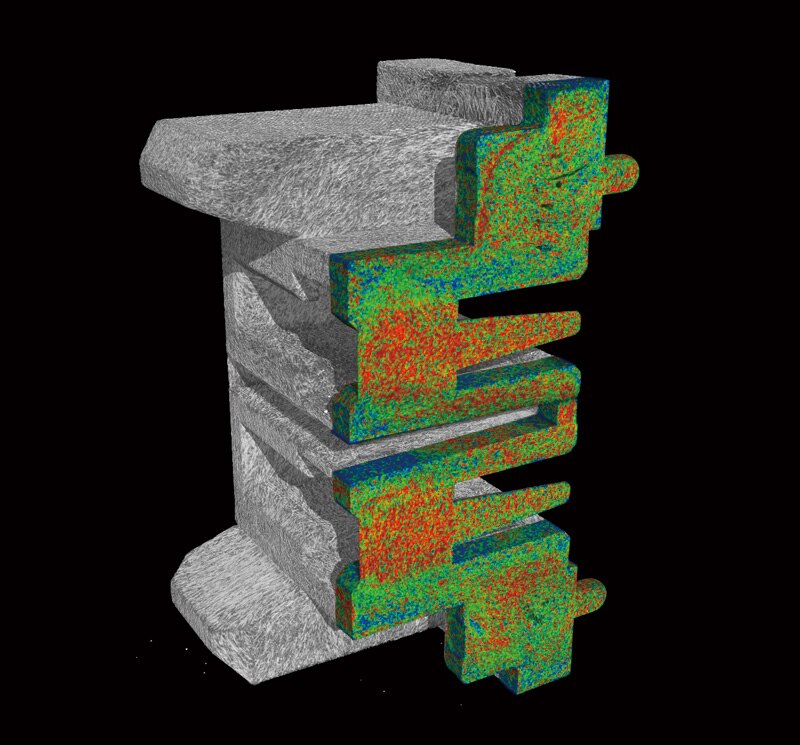

Fiber Orientation Analysis

Provided by Ehime University

BGA (Ball Grid Array)

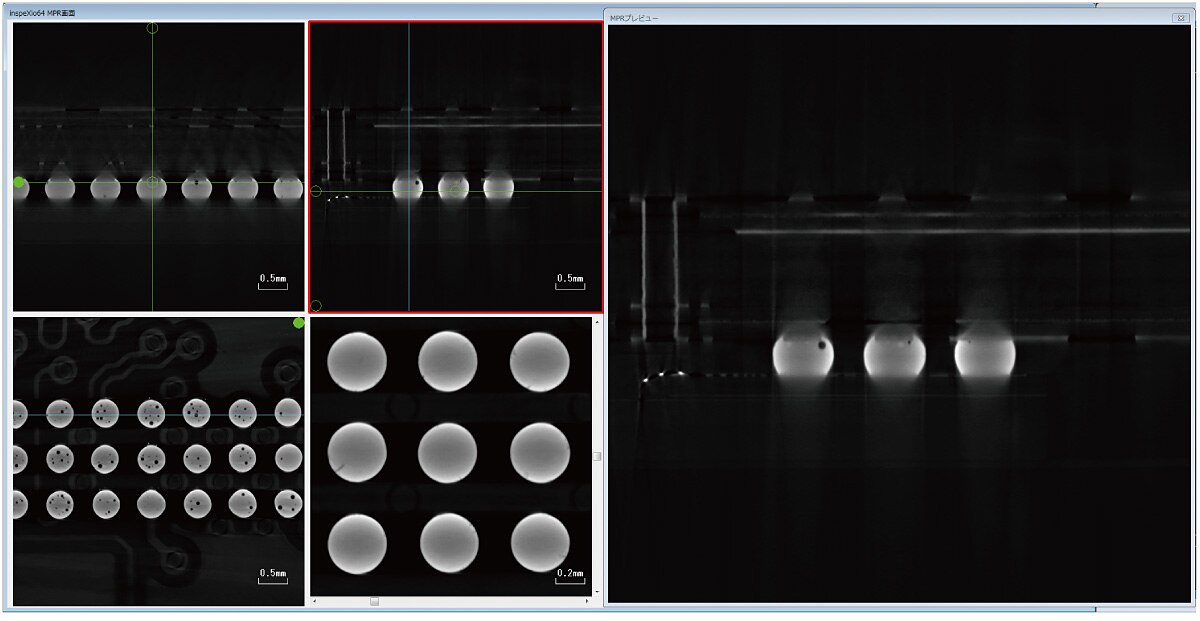

MPR Image FOV = ø5 mm

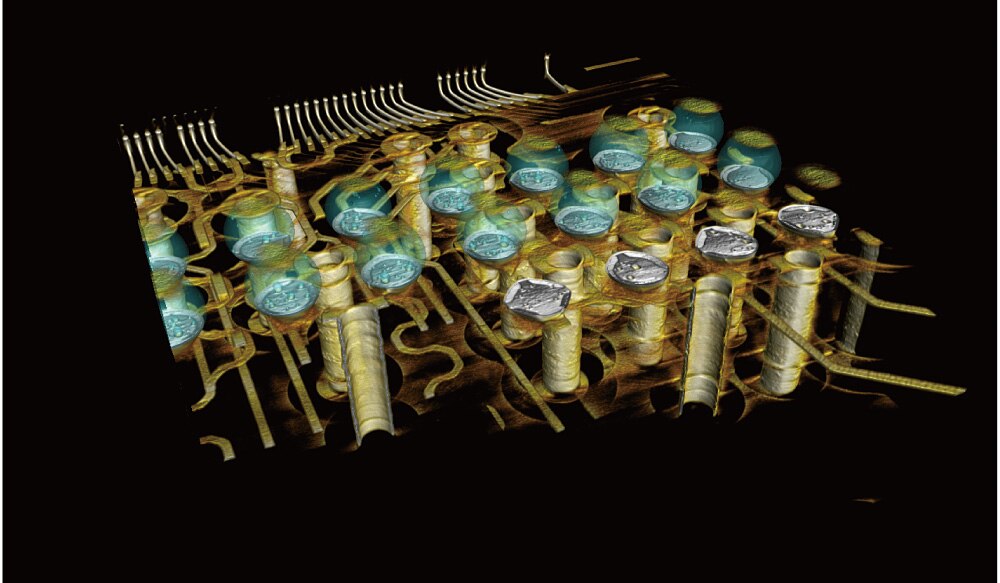

VR Image

Concrete

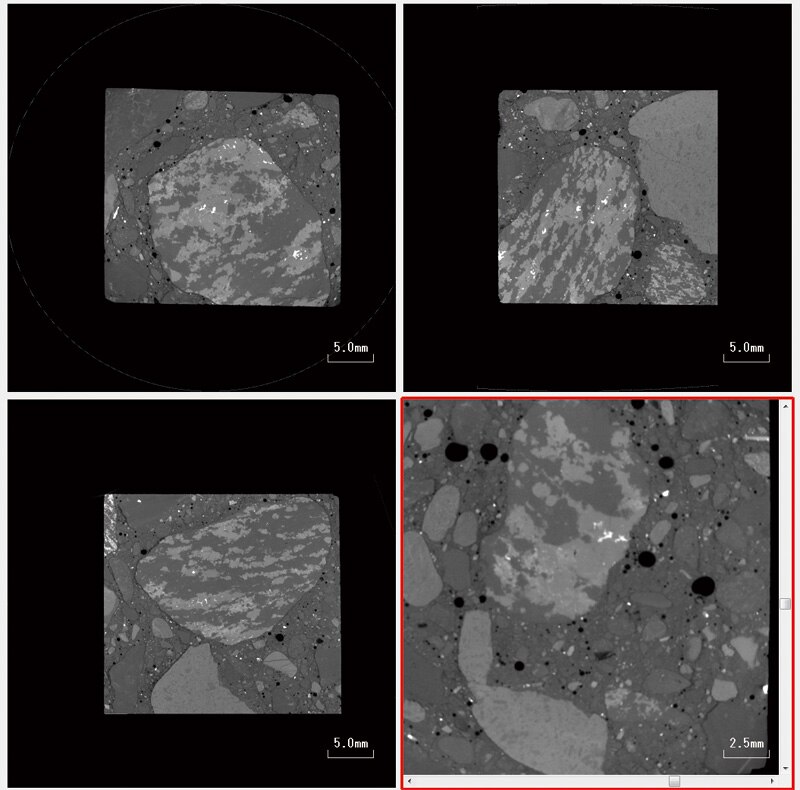

MPR Image FOV = ø42 mm

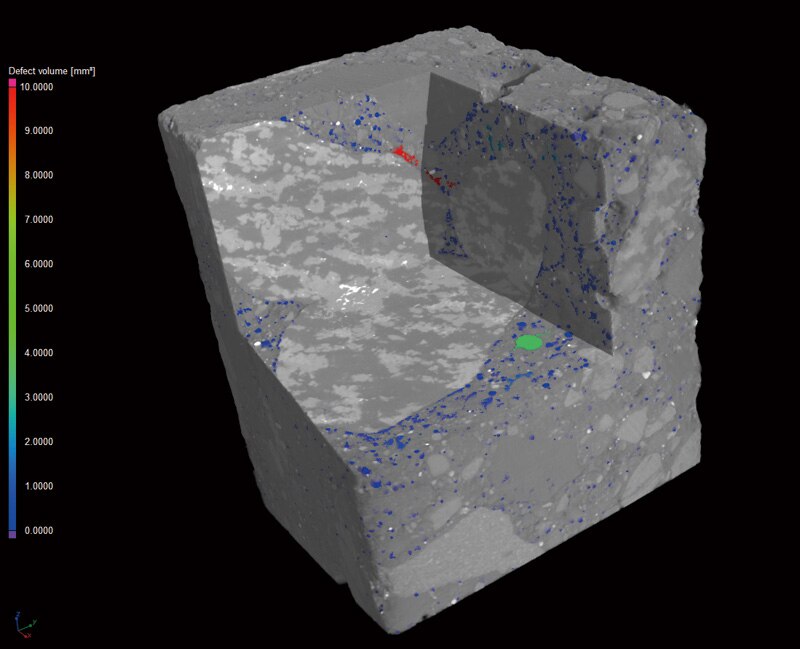

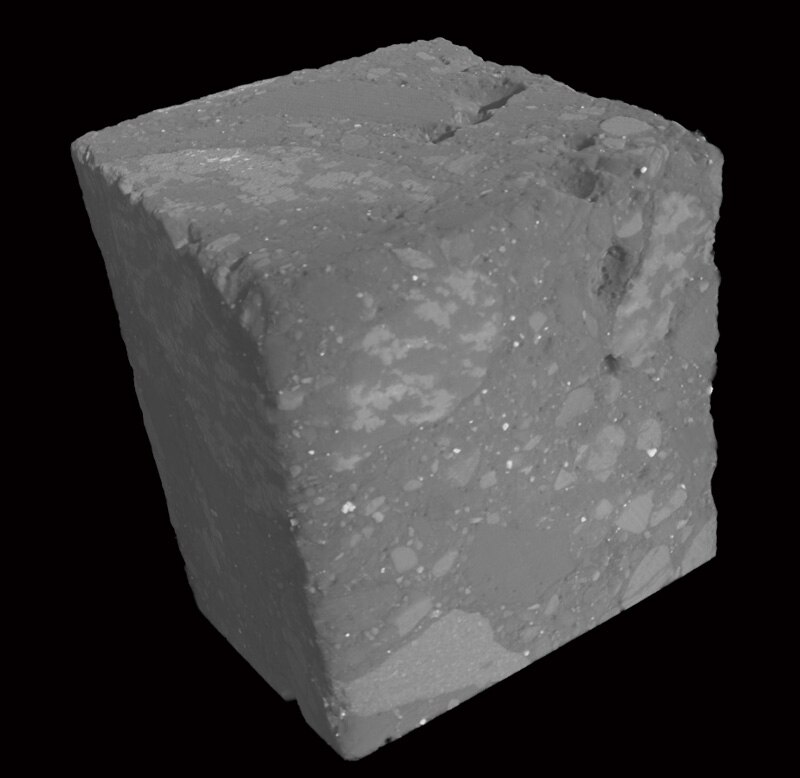

VR Image
Provided by Emeritus Professor Moriyoshi at Hokkaido University

Lithium-Ion Rechargeable Battery

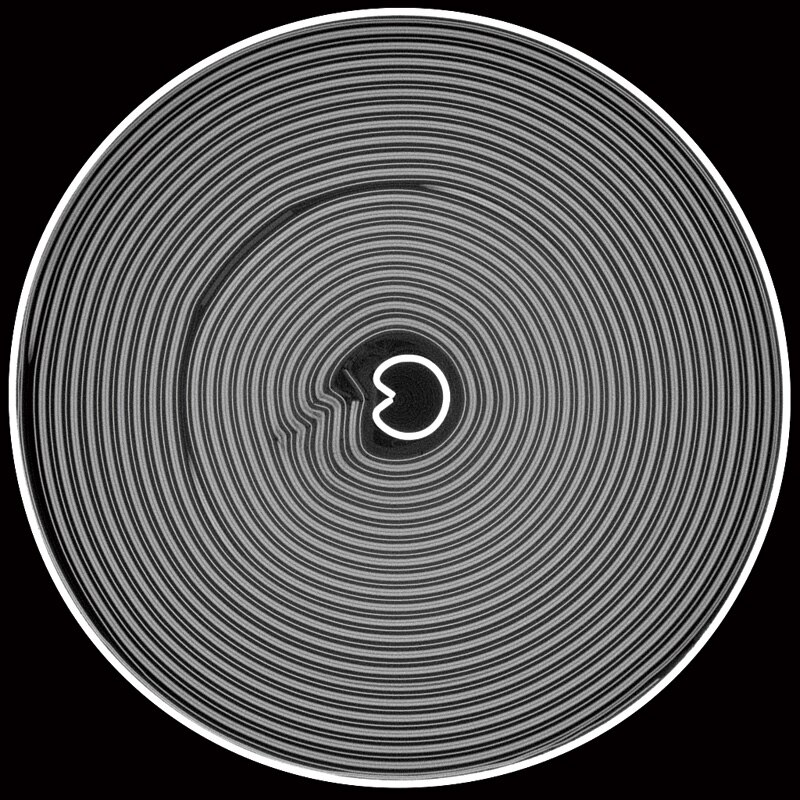

Cross Sectional Image FOV = ø18.4 mm

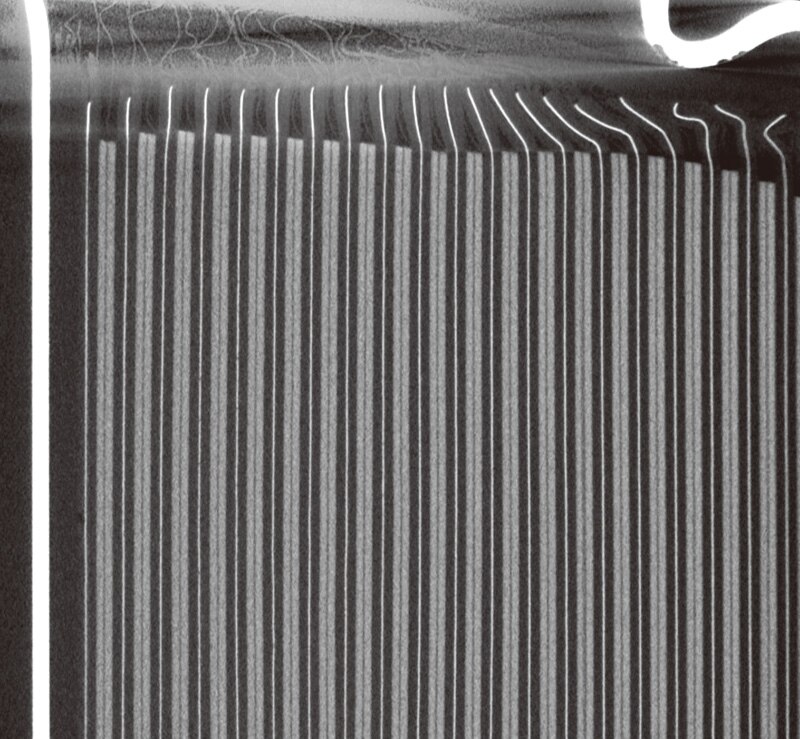

Oblique Image

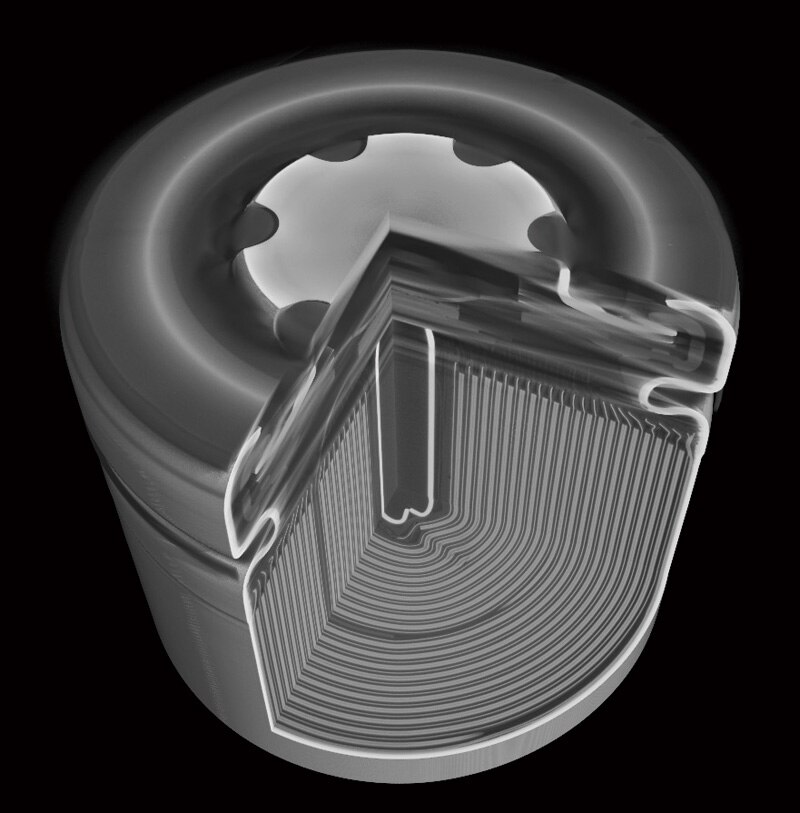

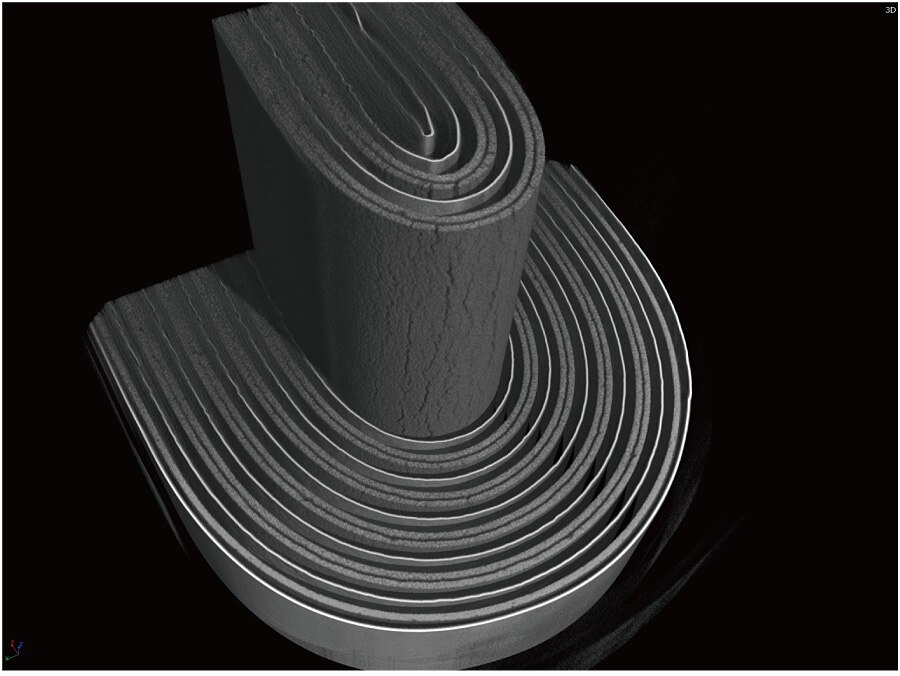

VR Image

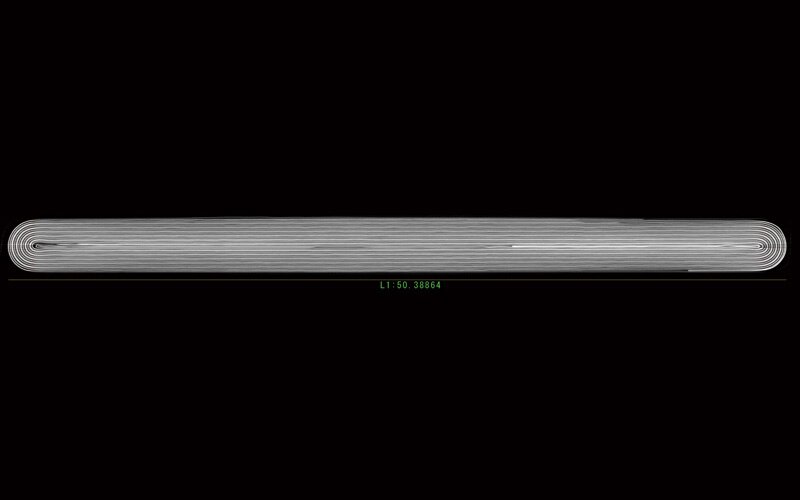

Rectangular Lithium Polymer Battery (For Smartphones)

Circuit Board

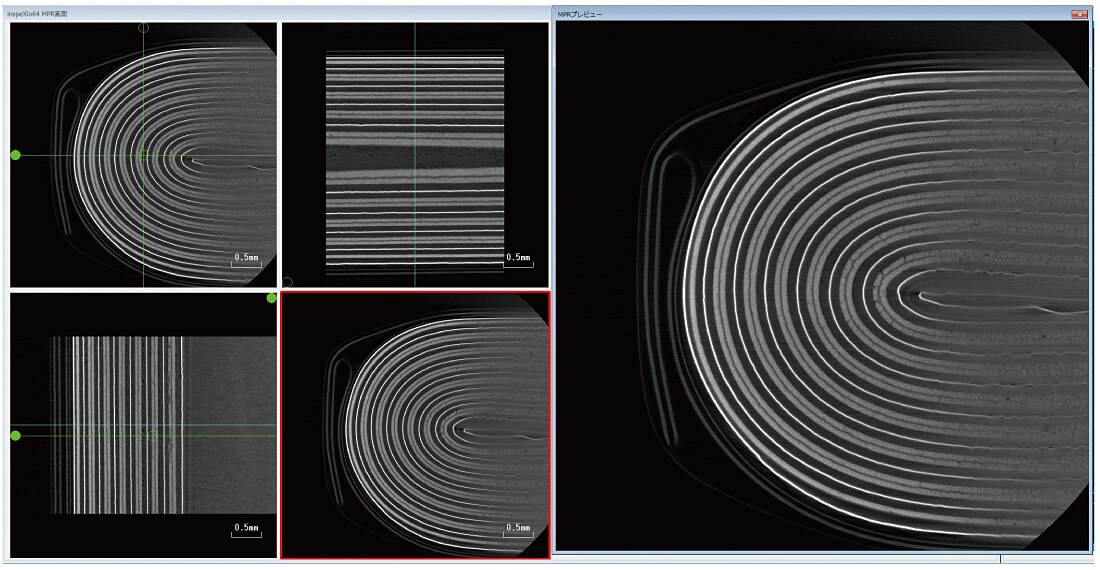

MPR Image FOV = ø 4.4 mm
VR Image

Mouse Fetus

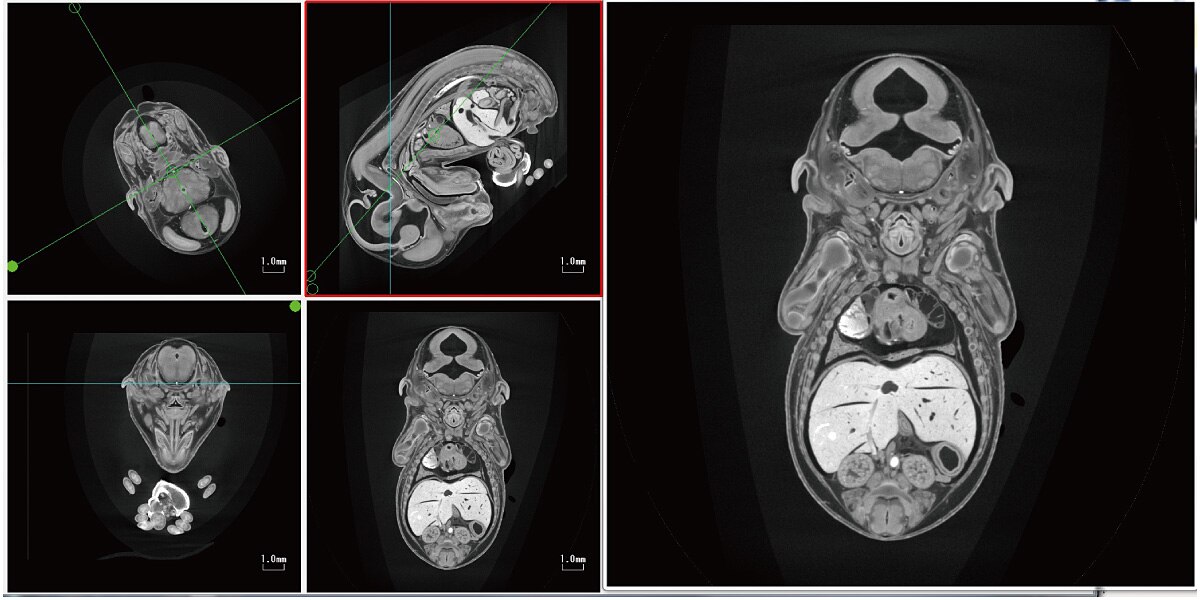

MPR Image FOV = ø 13.7 mm

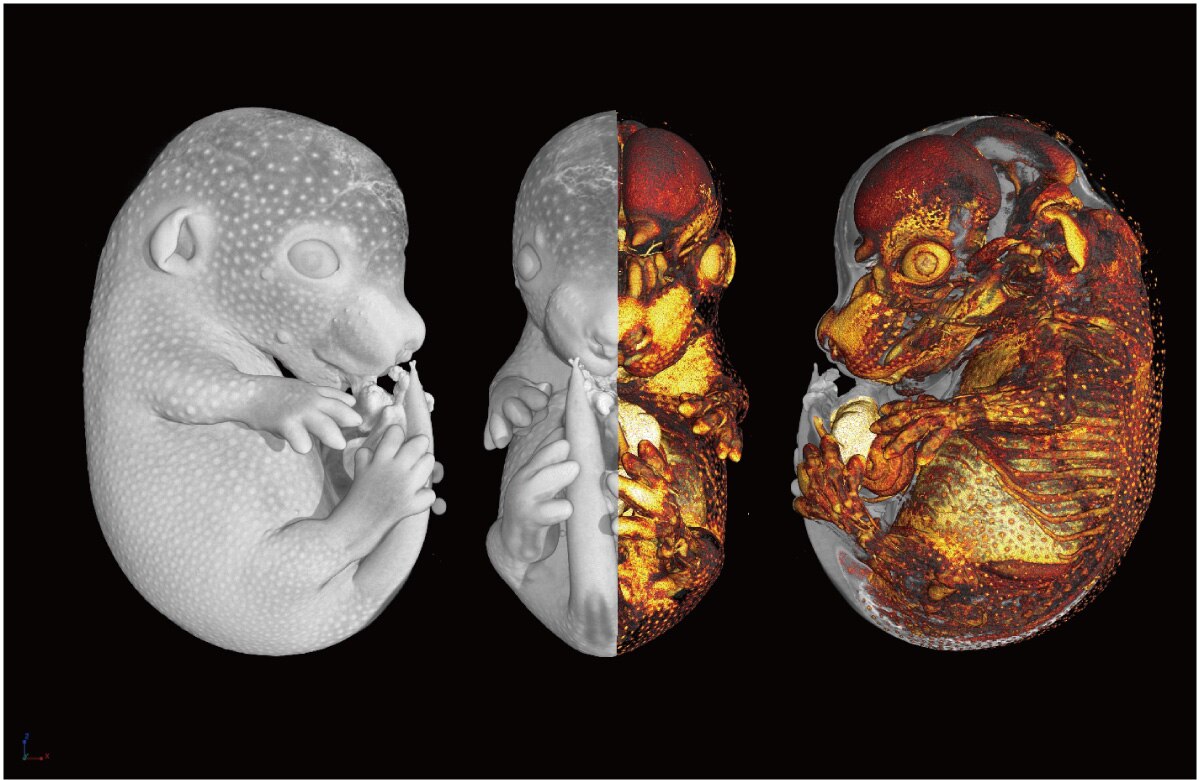

VR Image

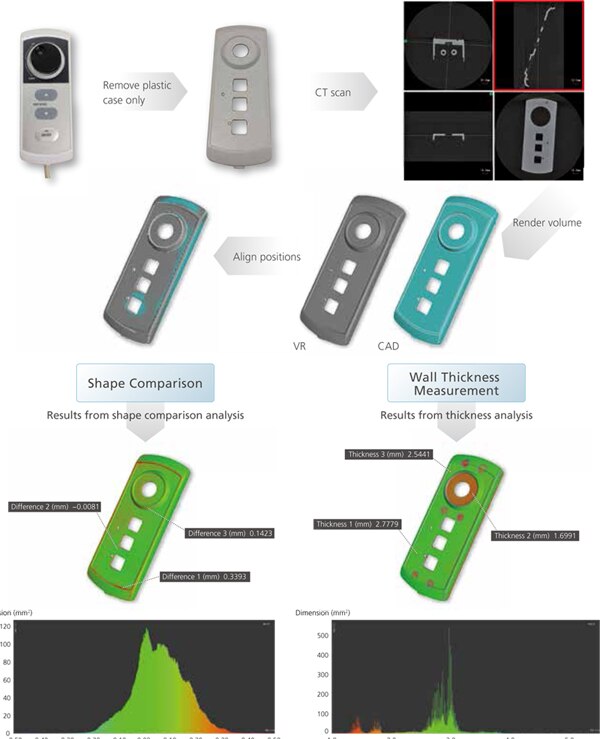

Analysis Using PointMaster Reverse Engineering Software

The software can align CT data with 3D-CAD data, calculate the distance between the boundary surface defined in the CT data and the corresponding 3D-CAD data, and display a color-coded map based on such differences.
